Homecraft Cedar Sauna Kits
Homecraft Cedar Sauna Kits
SKU:HC-CEDAR-4X4
Couldn't load pickup availability
Please note: after you order online, we will contact you to finalize specs, and pricing may change at that point. Price shown is for pickup only. Assembly and delivery are not included.

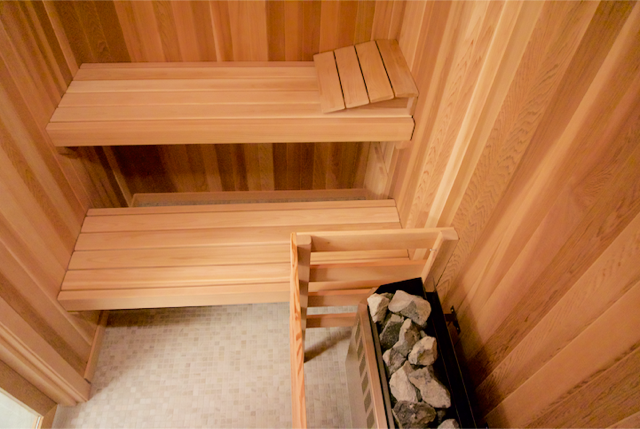

Homecraft DIY cedar sauna kits include everything you need to turn a pre-framed space into a premium sauna room. Built from clear, Grade A+ Western Red Cedar with a CSA-approved heater, pre-routed benches, tongue-and-groove panels and a cedar door, each kit is designed for a straightforward weekend installation. Choose from 15 standard sizes, from 4x4 to 8x8 ft, for a basement corner, backyard shed or standalone building.
Key features
- Premium Western Red Cedar: Grade A+, clear, kiln-dried, tongue-and-groove
- Complete DIY kit with heater, walls, ceiling, door, benches and all essentials
- 15 standard sizes, with upgrades available (heaters, L-bench layouts, glass doors, cedar flooring)
- Made in British Columbia, backed by Homecraft's 35+ years of sauna experience

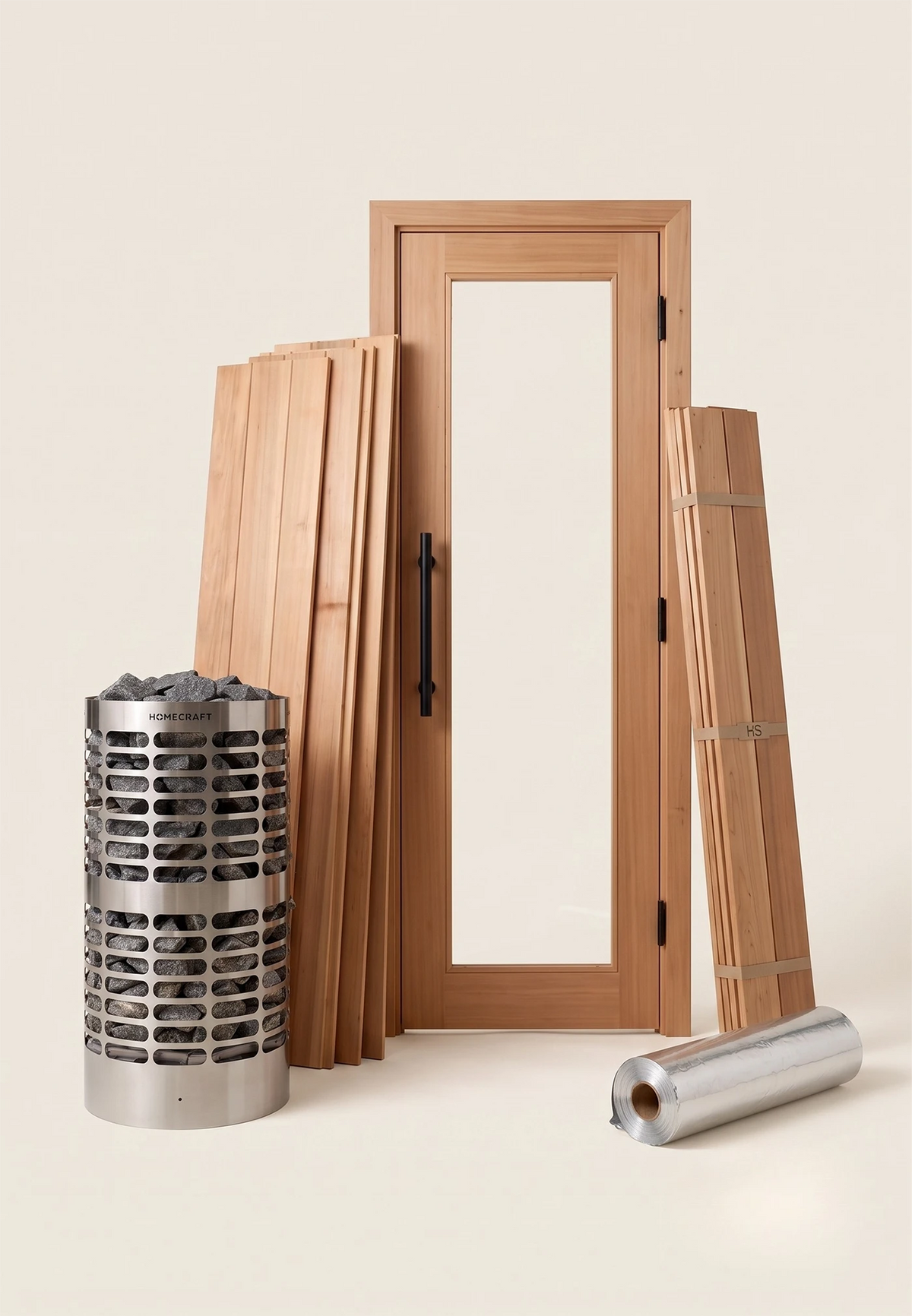

What's included
- CSA-approved Homecraft heater with digital control and stones
- Western Red Cedar walls and ceiling (Grade A+, clear, kiln-dried, tongue-and-groove)
- Cedar door with all hardware

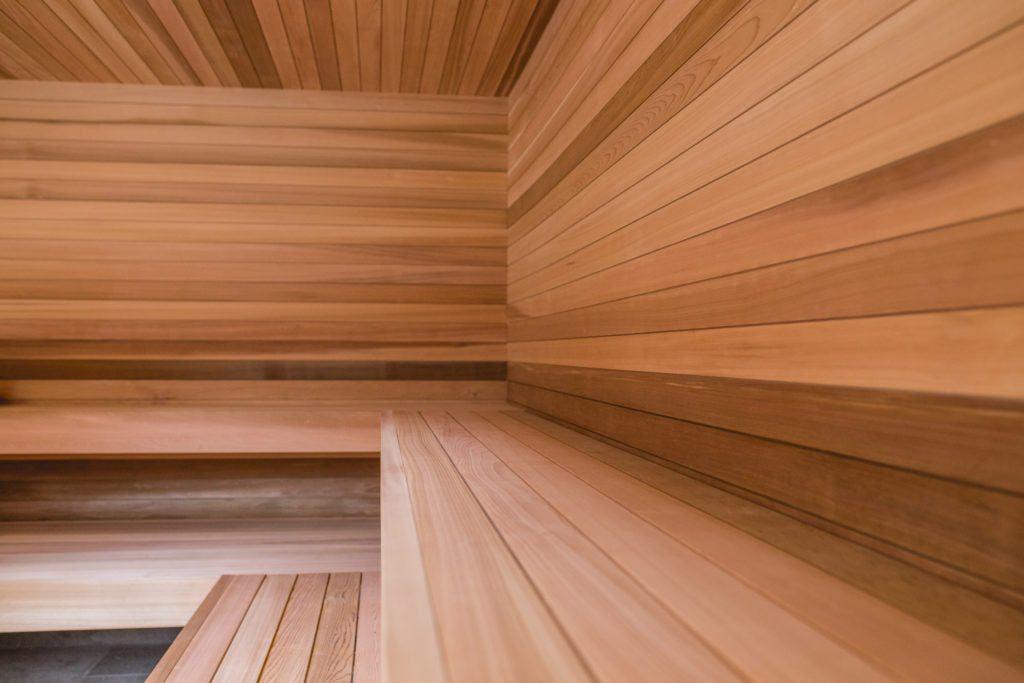

- Upper and lower cedar benches
- Vapour-proof sauna light for wall or ceiling mount
- Aluminum foil vapour barrier
- Heater guard fence
- Complete installation instructions
Sizes, heaters and capacity
Each size ships with a matched heater. Our heaters are available separately: Revive Slim (4x4 to 5x5), Revive (5x6 to 7x8) and Apex (8x8).
| Size | Room size, m (ft) | Occupancy | Heater included | Volume at 2.1 m (7 ft) ceiling |
|---|---|---|---|---|

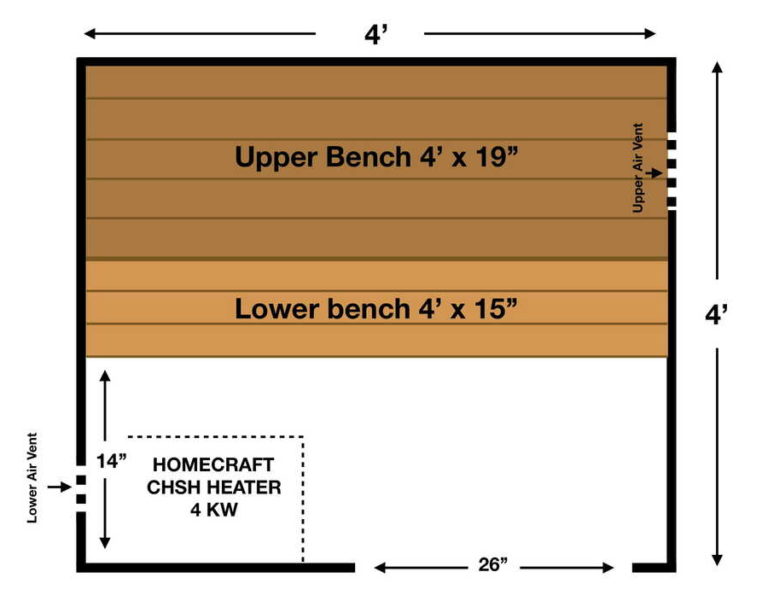

| 4x4 | 1.22 x 1.22 (4 x 4) | 2 | 4 kW Revive Slim | 3.2 m³ (112 ft³) |

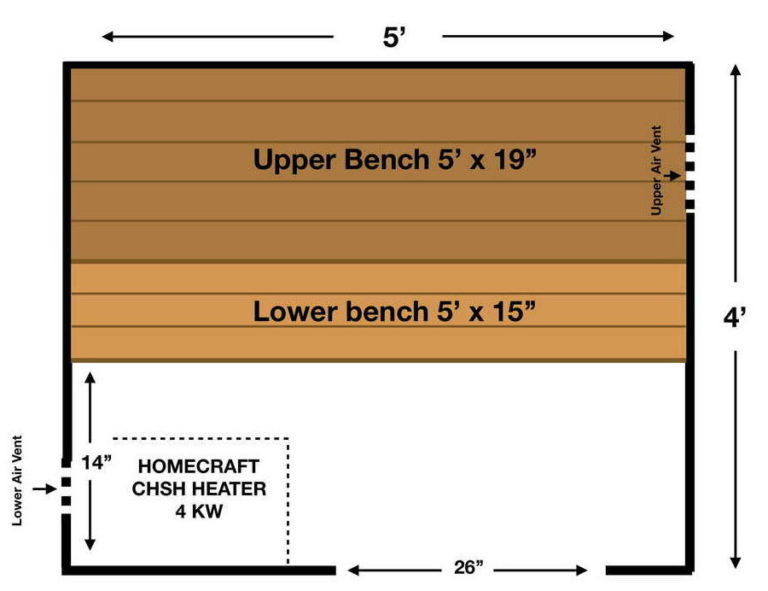

| 4x5 | 1.22 x 1.52 (4 x 5) | 2 | 4 kW Revive Slim | 4.0 m³ (140 ft³) |

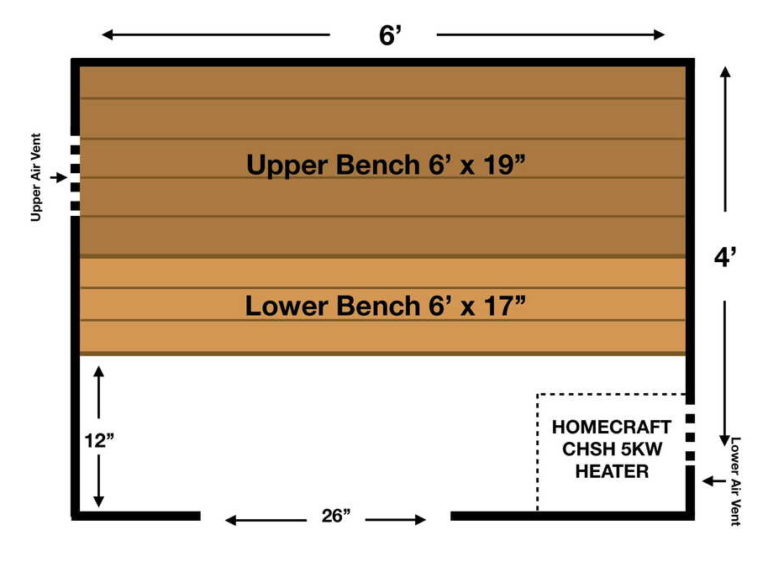

| 4x6 | 1.22 x 1.83 (4 x 6) | 3 | 5 kW Revive Slim | 4.8 m³ (168 ft³) |

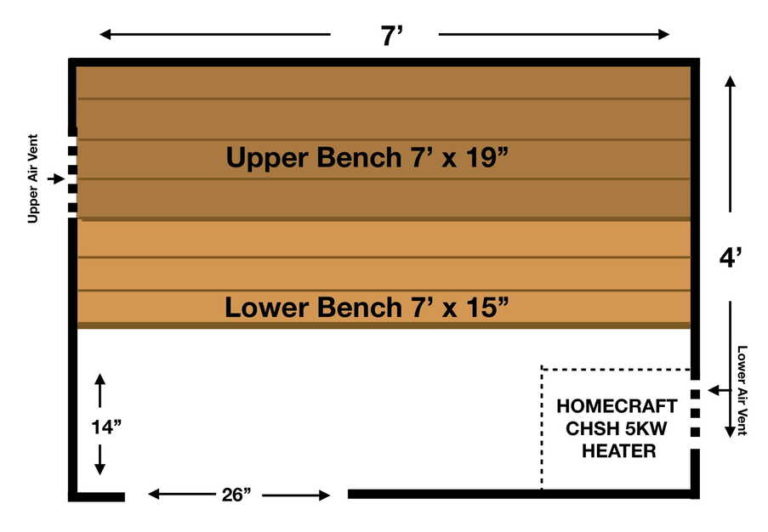

| 4x7 | 1.22 x 2.13 (4 x 7) | 3 | 5 kW Revive Slim | 5.5 m³ (196 ft³) |

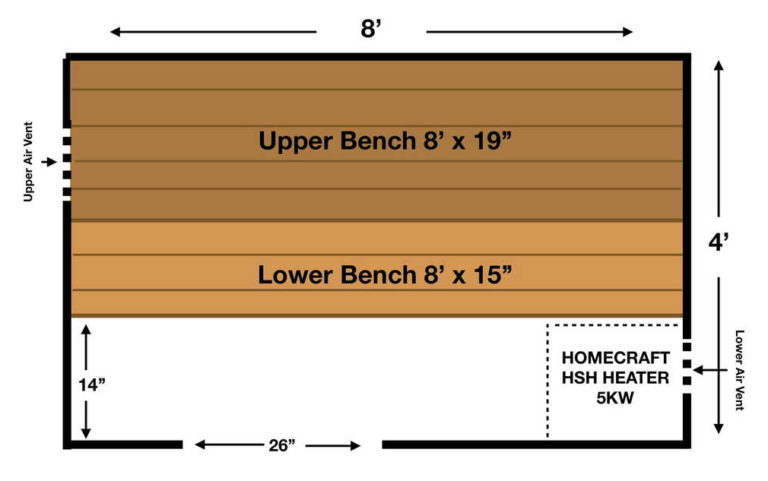

| 4x8 | 1.22 x 2.44 (4 x 8) | 3-4 | 5 kW Revive Slim | 6.3 m³ (224 ft³) |

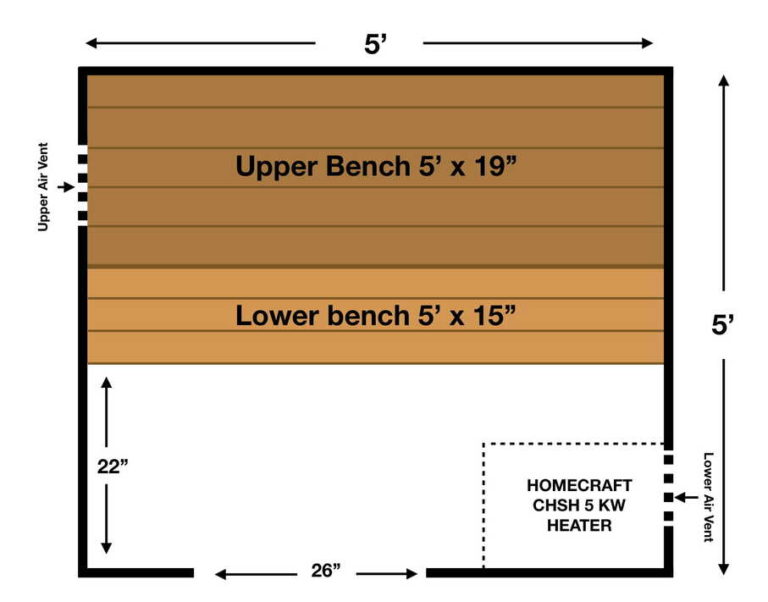

| 5x5 | 1.52 x 1.52 (5 x 5) | 2-3 | 5 kW Revive Slim | 5.0 m³ (175 ft³) |

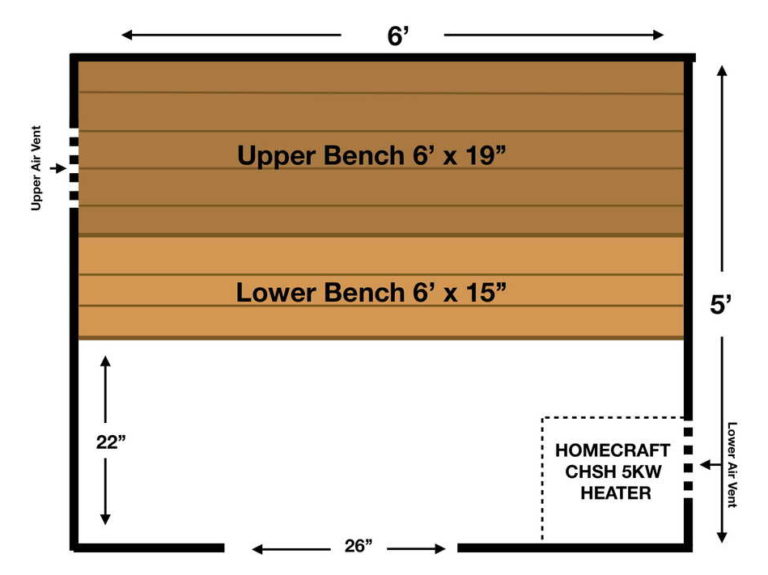

| 5x6 | 1.52 x 1.83 (5 x 6) | 3 | 6 kW Revive | 5.9 m³ (210 ft³) |

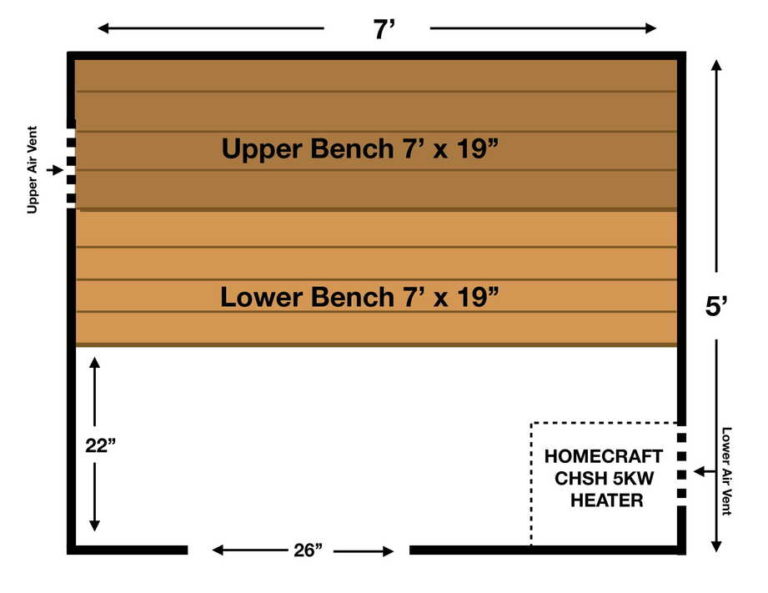

| 5x7 | 1.52 x 2.13 (5 x 7) | 3-4 | 7.5 kW Revive | 6.9 m³ (245 ft³) |

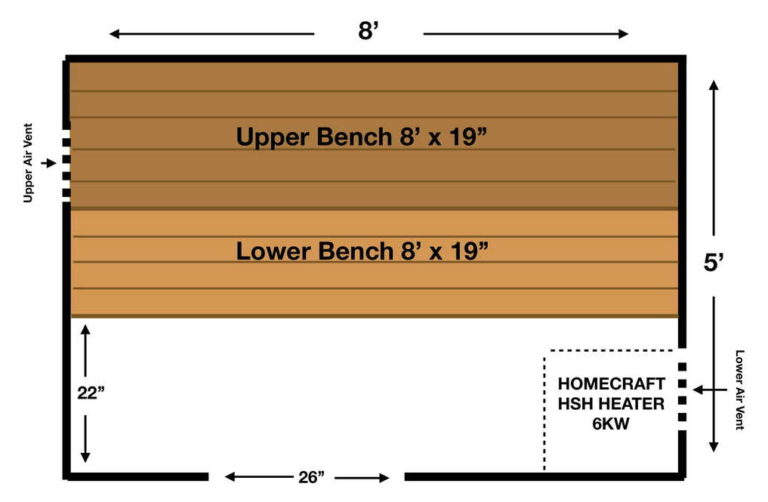

| 5x8 | 1.52 x 2.44 (5 x 8) | 3-4 | 7.5 kW Revive | 7.9 m³ (280 ft³) |

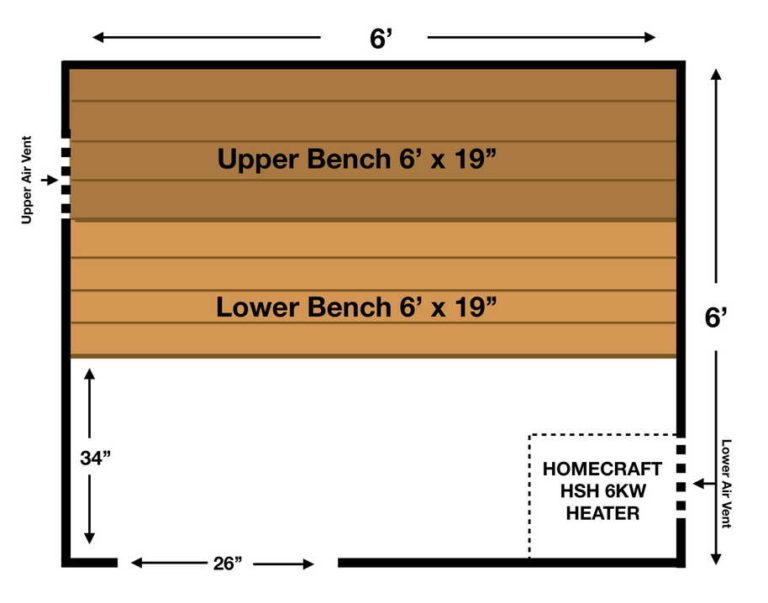

| 6x6 | 1.83 x 1.83 (6 x 6) | 4 | 7.5 kW Revive | 7.1 m³ (252 ft³) |

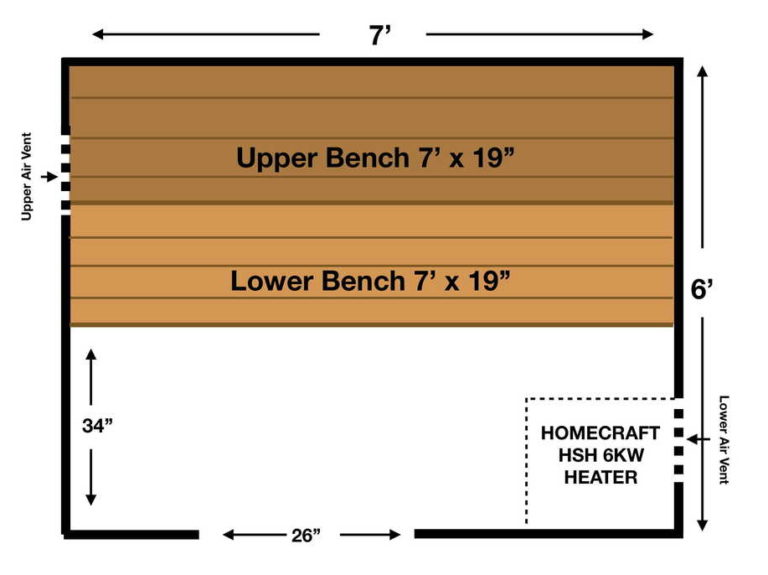

| 6x7 | 1.83 x 2.13 (6 x 7) | 4-5 | 7.5 kW Revive | 8.3 m³ (294 ft³) |

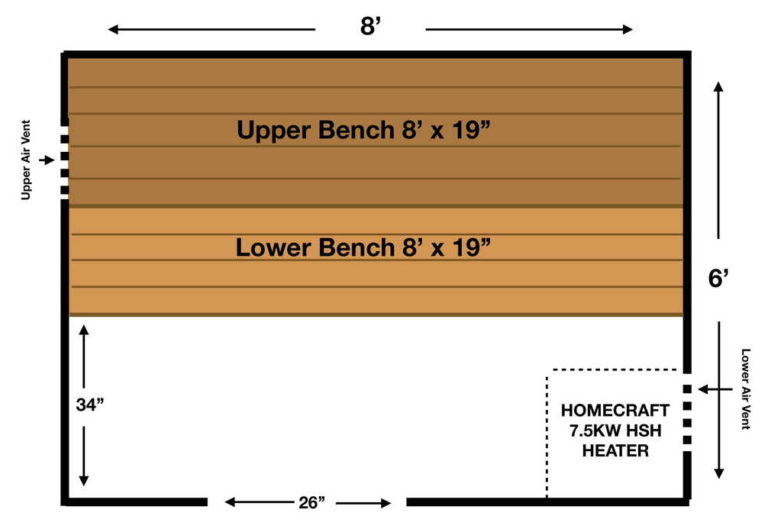

| 6x8 | 1.83 x 2.44 (6 x 8) | 5-6 | 7.5 kW Revive | 9.5 m³ (336 ft³) |

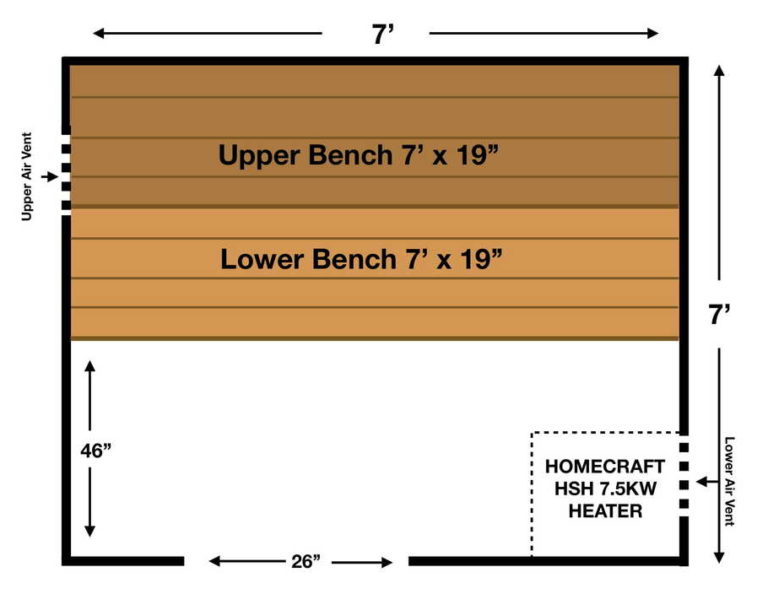

| 7x7 | 2.13 x 2.13 (7 x 7) | 5-6 | 9 kW Revive | 9.7 m³ (343 ft³) |

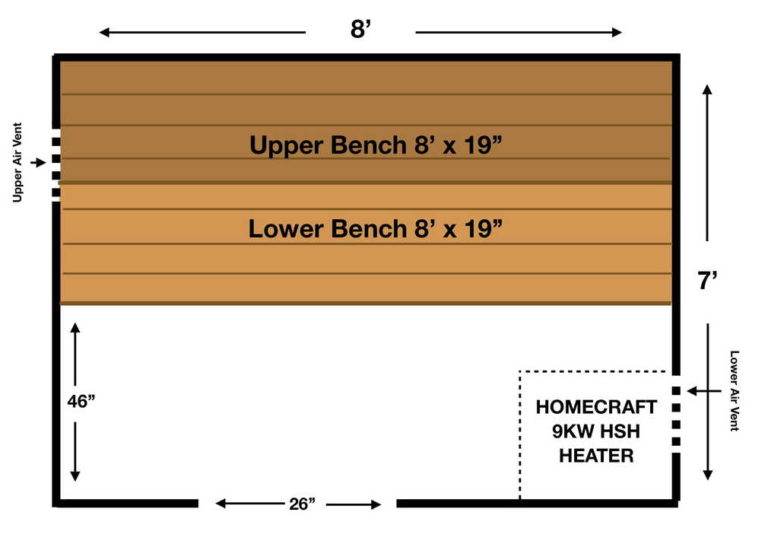

| 7x8 | 2.13 x 2.44 (7 x 8) | 6-8 | 9 kW Revive | 11.1 m³ (392 ft³) |

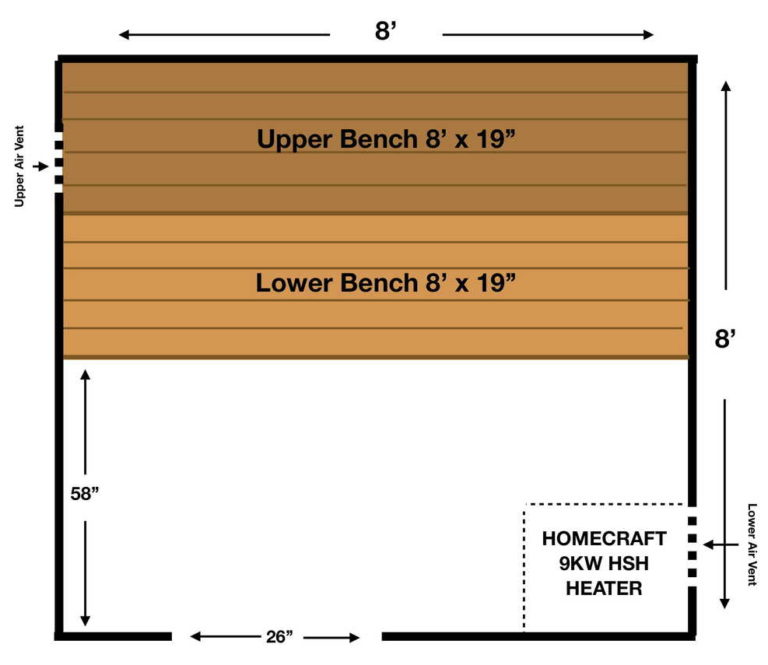

| 8x8 | 2.44 x 2.44 (8 x 8) | 6-8 | 9 or 10 kW Apex | 12.7 m³ (448 ft³) |
Before you build
- Insulation is not included. Your pre-framed room needs R-13 (RSI 2.3) batt insulation in the walls and R-19 (RSI 3.3) in the ceiling, with nothing below R-12. The kit includes the aluminum foil vapour barrier, installed over the insulation on the warm side. Never use a plastic vapour barrier in a sauna.
- Floor is not included. Build on concrete, tile, sealed cement or a cedar platform. Never on carpet, vinyl or laminate.
- Electrical: a licensed electrician must wire the 240V heater to code.
- Tools: skill saw, drill, level, hand saw, table saw and brad nailer.
- Outdoor builds: suitable inside a framed, insulated, weathertight structure such as a shed or garage. In cold weather, consider sizing the heater up by 1 to 2 kW.

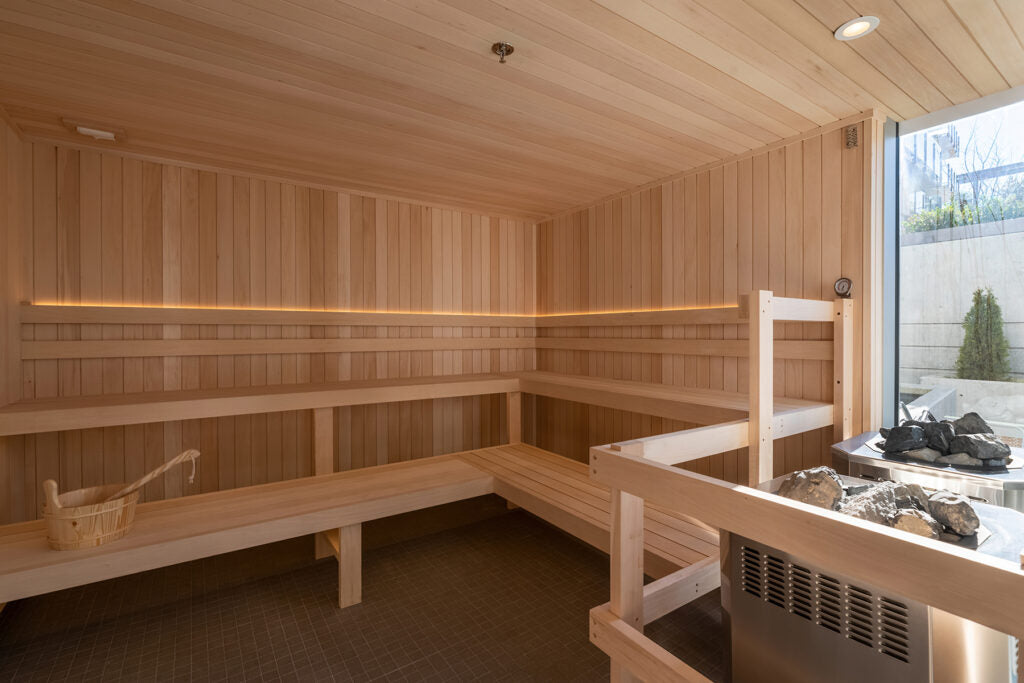

Custom options are available, including upgraded heaters, L-shape benches, glass doors, LED lighting and WiFi control. Contact us at 604-985-0057 or ideas@crystalview.ca to discuss your space.
